Vhdl Keywords List

A systematic representation of all the operators in vhdl with brief descriptions and easy to understand examples of their applications. The following is intended simply to provide a quick and concise reference on commonly used syntax in vhdl. This document contains a reference on vhdl syntax that you may encounter during this course it is by no means complete there are many references available online that you may check for more complete material.

tag heuer connected modular 45 price tablou indian wells 2019 tableta samsung tab a tablet samsung tab 3 lite sm t110 tableta lenovo yoga tab 2 tableta huawei mediapad t1 10 tableta samsung tab a 2019 tablet xiaomi mi pad 4 plus

Programming In Hdl Language Elements Of Vhdl

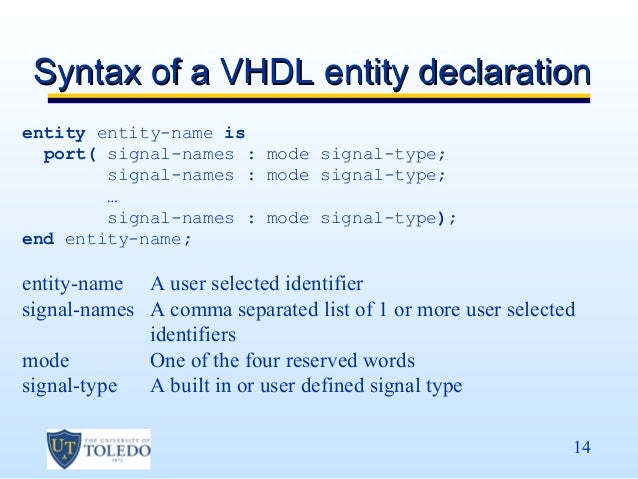

Vhdl Design Units Syntax Of A Vhdl Program

Vhdl Coding Basics Overview Libraries Library Ieee Use Ieee Std Logic 1164 All Use Ieee Std Logic Arith All Use Ieee Std Logic Signed All Use Ieee Std Logic Unsigned All Ppt Download

1 Lecture 6 In This Lecture We Will Introduce The Vhdl Language And Its Benefits The Vhdl Entity Concurrent And Sequential Constructs Structural Design Ppt Download

Ecom 4311 Digital System Design With Vhdl Ppt Video Online Download

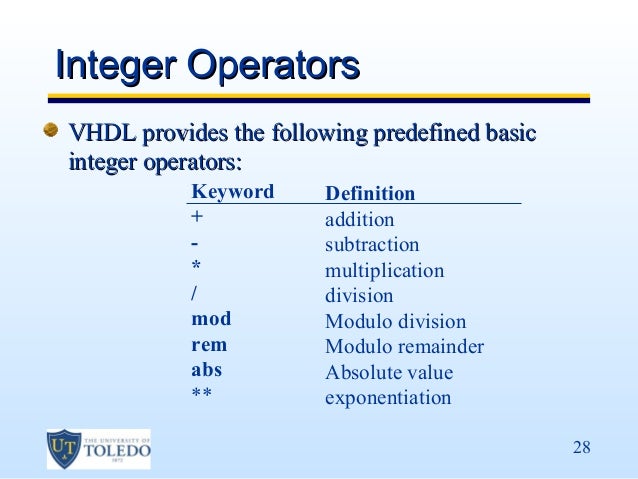

Vhdl Part 2

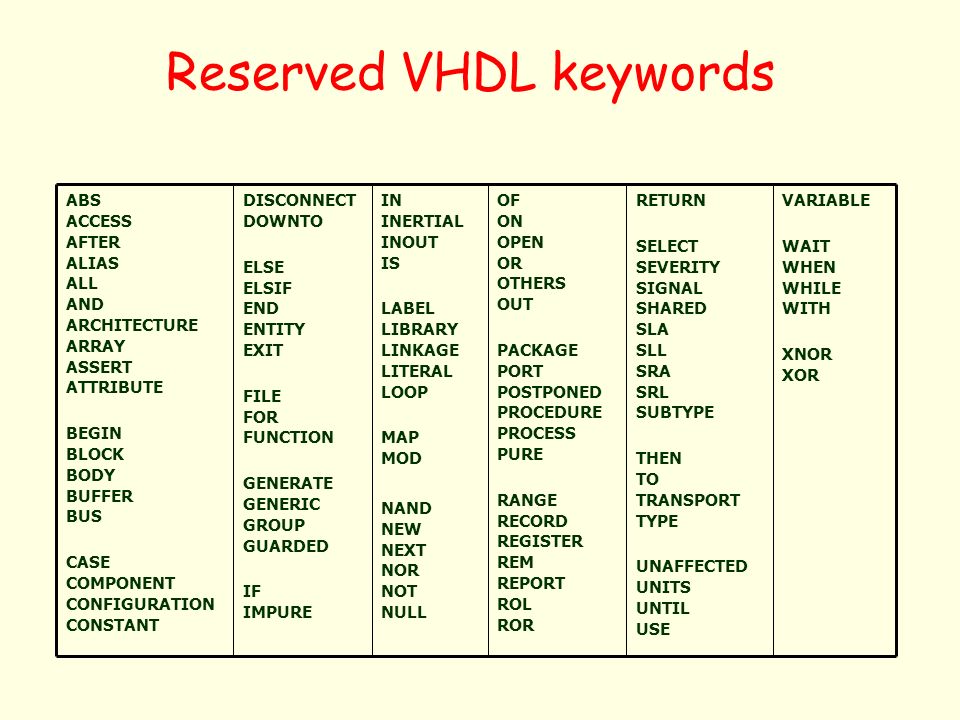

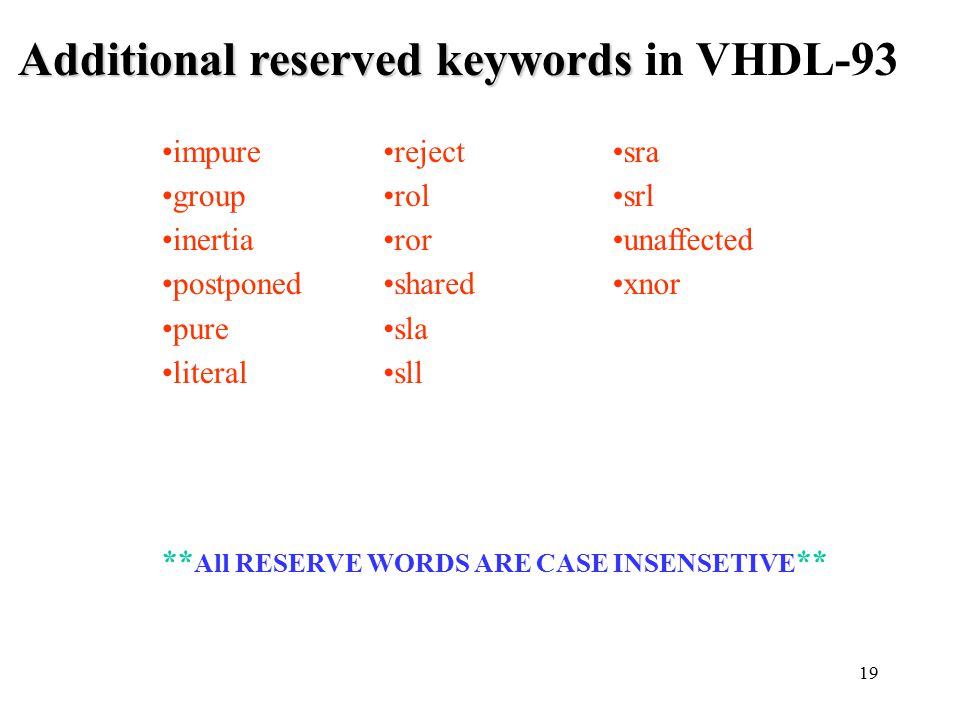

Vhdl reserved keywords words that cannot be used in other contexts module signal names etc.

Vhdl keywords list. To make your life easier in vhdl 2008 we have the option of using the keyword all to represent all of the input signals rather than specifying them individually. In vhdl 2008 the keyword all is allowed to use instead of listing every signal. Unfortunately most synthesizing software don t support this newer revision of the vhdl language. This means our list of values are just strings or words which we can assign to any instances of the type.

If we do not specify the sensitivity list we will have simulation mismatches so it is strongly suggested. The extended identifier end is allowed. Vhdl allows integer literals and real literals. In this video tutorial we will learn how to create a process using a sensitivity list in vhdl.

It is helpful during creating memory blocks fifos shift registers ram rom or in designs where exist duplicated data flows pipes or blocks many adc channels filters etc. Extended identifiers can make use of keywords since these are considered different words e g. Let s first summarize all the operators in a neat little list that you can screenshot and keep handy. Vhdl syntax reference author s note.

The list of values is a comma separated list of all the values of our type can have. For a list of all the keywords click on complete keyword list. Vhdl synthesizer see appendix a quick reference for a list of exceptions and constraints on the vhdl synthesizer s support of vhdl see appendix b limitations this chapter shows you the structure of a vhdl design and then describes the primary building blocks of vhdl used to describe typical circuits for synthesis. Access used to define an access type pointer after specifies a time after now alias create another name for an existing identifier all dereferences what precedes the all and operator logical and of left and right operands architecture a secondary design unit.

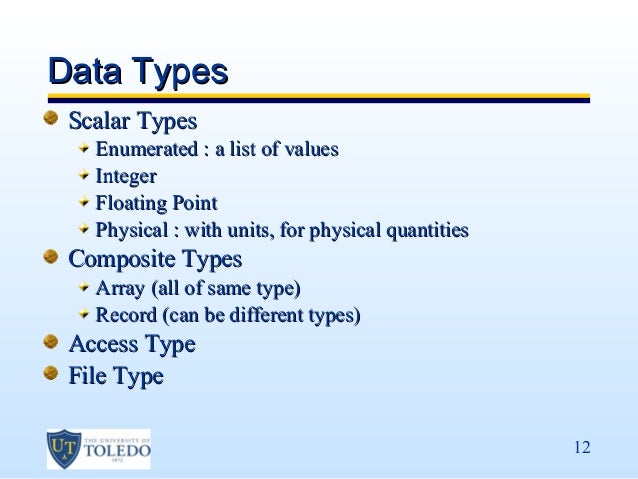

The default number representation is the decimal system. When declaring a new type in vhdl we typically create an enumerated type. Keywords vhdl types array a collection of values of the same type is very useful representation of data in vhdl. Vhdl reserved words abs operator absolute value of right operand.

The keywords are shift left and shift right.
