Unlike a solid type construction in a capacitance graded transformer bushing conducting layers are inserted at predetermined radial intervals within the insulation that separates the centre conductor from the insulator housing of the bushing.

Transformer hv bushing. Do not test a bushing while it is in its wood shipping crate or while it is lying on wood. Condenser types have a central conductor wound with alternating layers of paper insulation and tin foil and filled with insulating oil. High voltage bushings are generally oil filled condenser type. High voltage bushings contribute 30 to all fires and explosions associated with power transformer breakdowns.

The types of bushing are as follows. Hitachi abb power grids offers a broad range of bushings for transformers reactors switchgear and traction and wall applications in both oil impregnated paper oip and resin impregnated paper rip technologies. When bushings are new they should be doble tested as an acceptance test. High current bushing assembles.

High voltage bushing assemblies. High voltage bushings recent 2006 hvdc transformer and wall bushings for 800 kv dc were developed and verified through exten sive short and long term testing. Webster wilkinson produce plug in bushings in accordance with the requirements of en 50180 standards. Effective diagnostic tools are therefore of the utmost importance and should be an integral part of the life cycle oriented preventative maintenance strategy.

High voltage mexican market insulators. In electric power a bushing is a hollow electrical insulator that allows an electrical conductor to pass safely through a conducting barrier such as the case of a transformer or circuit breaker without making electrical contact with it. Capacitance graded bushings designed for higher voltage ratings are used for a transformer s high voltage winding. High voltage bushing wells pdf 600a epoxy bushings pdf distribution transformer lv bushings.

Distribution transformer hv bushings. Bushing of transformer for h v side and l v side the bushing of power transformer is a type of porcelain or ebonite post insulator put on the top or side of the transformer tank through which connections are made to the external circuit. The material properties change with time under dc stress and therefore long term testing enables verification of the dc design before putting a new prod uct into service. These probably operate at several hundred thousand volts.

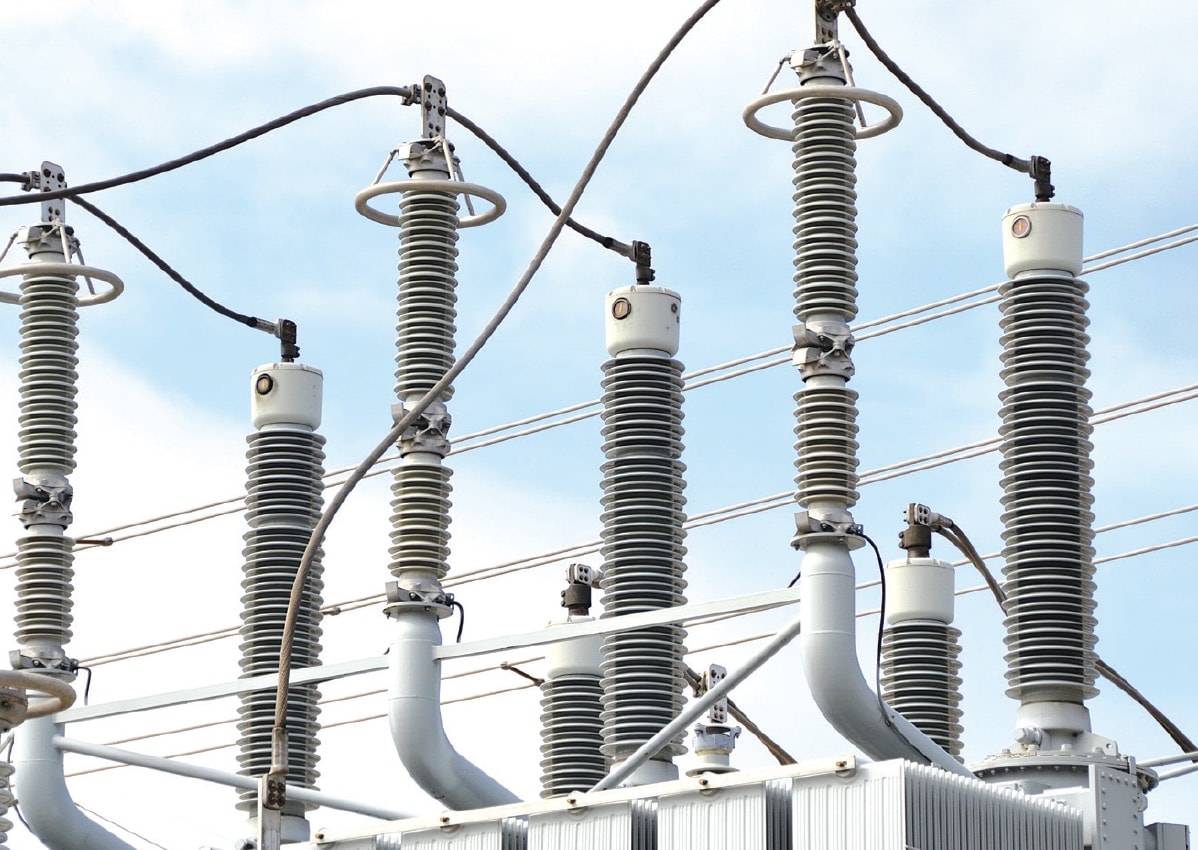

Plug in bushings are normally used in an oil air arrangement by their definition this range of bushings is designed to allow off load disconnection of cables allowing the quicker replacement of transformers or switchgear. Refer to the m4000 doble test set instructions the doble bushing field test guide 9 and the manufacturer s data for guidance on acceptable results. Transformer with 420kv rip bushings photo credit. Bushings are critical components in all electrical networks as their chief role is to bring current at high voltage through a grounded barrier.
